Switch crazy?
#12

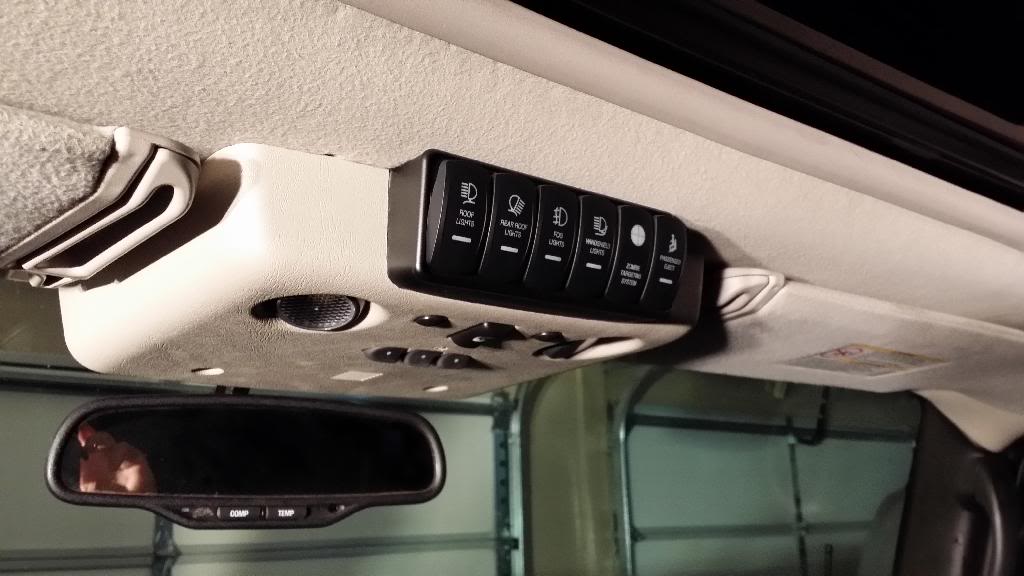

It was all custom, bought the 6 switch panel from OTRATTW.com which is where I got all the switches. I expoxied them fiberglassed in the panel.
They control all my roof lights and fog light bar. The last 2 on the right are just fillers until I have something to wire them to. I'm actually thinking of having a custom face made for my radar detector so it can be hard wired.
There is more wiring to mine, that was just the switches, no power or ground wires.

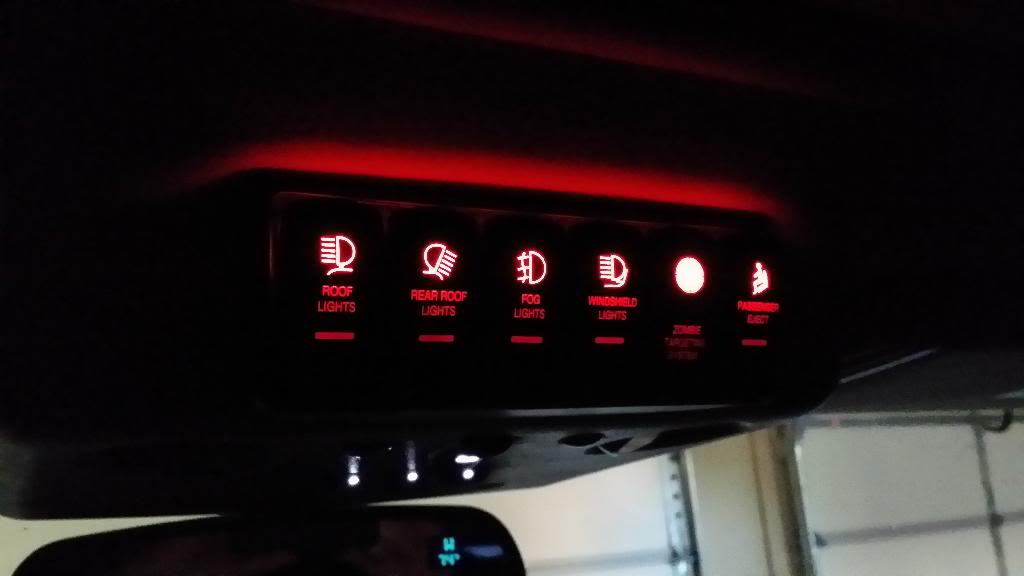

Here's a pic of them on and off:
They control all my roof lights and fog light bar. The last 2 on the right are just fillers until I have something to wire them to. I'm actually thinking of having a custom face made for my radar detector so it can be hard wired.
There is more wiring to mine, that was just the switches, no power or ground wires.
Here's a pic of them on and off:
#13
Last edited by E-dragon; 08-05-2014 at 08:17 PM.
#14
1. Front grill guard lights
2. Outer two roof lights on the Gobi rack
3. Inner two roof lights on the rack
4. Rear reverse lights on the rack ( come on when in reverse or a switch in the back or the 4th switch on the overhead )
5. Empty ( maybe some alley lights )
6. Empty ( maybe a second set of 6" on the grill guard )
7. Empty ( might switch my DRL's to work at night too, as fogs, since they are already yellow)
8. CB linear
BTW putting them in the on star plate would be a good spot too...
Last edited by E-dragon; 08-05-2014 at 08:20 PM.
#15
It was all custom, bought the 6 switch panel from OTRATTW.com which is where I got all the switches. I expoxied them fiberglassed in the panel.
They control all my roof lights and fog light bar. The last 2 on the right are just fillers until I have something to wire them to. I'm actually thinking of having a custom face made for my radar detector so it can be hard wired.
There is more wiring to mine, that was just the switches, no power or ground wires.
Here's a pic of them on and off:
They control all my roof lights and fog light bar. The last 2 on the right are just fillers until I have something to wire them to. I'm actually thinking of having a custom face made for my radar detector so it can be hard wired.
There is more wiring to mine, that was just the switches, no power or ground wires.
Here's a pic of them on and off:
LOOKS GREAT!
Nice clean look to it, almost kinda looks factory installed..
When I label mine; the unused ones will probably read:
"60 Cal." "Grenade Launcher" "Zombie Deterrent" or something to that effect..
BTW Love the labels on your two extra switches..
.
.
.
.
Last edited by E-dragon; 08-05-2014 at 08:32 PM.
#16
Thanks, it took quite a bit of work. It was my first time messing with Bondo Glass, that stuff doesn't work well!
If you look at my build threads on the other forums I had mine wired the same for my front rack lights. One switch did the outer 4 lights and one switch did the inner 4 lights. When I put these switches in I just wired them all to one switch.
If you look at my build threads on the other forums I had mine wired the same for my front rack lights. One switch did the outer 4 lights and one switch did the inner 4 lights. When I put these switches in I just wired them all to one switch.
#18
Ah yes, Zombie Targeting System. Rarely used but if needed a radar begins to spin and an automated turret gun released from the rear on top.
lol
