Chrome Hummer Fuel Door cover..weird question

Thread Tools

Search this Thread

  #1
Old 02-14-2013 | 10:05 AM
lostsoul77's Avatar
Thread Starter
|
Senior Member
Joined: Jun 2011
Posts: 146
From: Pittsburgh, Pa
Question Chrome Hummer Fuel Door cover..weird question

Where is a good place to get a replacement? Mine seems to be broken and won't stay shut; It will spring open but no tension to keep it shut so when I make turns or park downhill, it falls open. Anyone else had this issue or can this be fixed?

  #2
Old 02-14-2013 | 10:26 AM
SundownAudioNY's Avatar
Senior Member
Joined: Nov 2010
Posts: 273
From: New York
Default

It can easily be fixed, there is a little spring that holds the tension. Open the door a crack (about 1/2") and push down on the end that pivots. While pushing in, slide the door towards the rear of the vehicle and the door should separate. If the spring is bad or broke, it should come apart extremely easy. If it wasn't it would require a little more effort and you would have to be careful as to not loose the spring. There will be two little plastic cups/caps and the spring is inside there. Replace the spring and reverse the disassembly process

  #3
Old 02-14-2013 | 10:34 AM
lostsoul77's Avatar
Thread Starter
|
Senior Member
Joined: Jun 2011
Posts: 146
From: Pittsburgh, Pa
Default

Originally Posted by SundownAudioNY
It can easily be fixed, there is a little spring that holds the tension. Open the door a crack (about 1/2") and push down on the end that pivots. While pushing in, slide the door towards the rear of the vehicle and the door should separate. If the spring is bad or broke, it should come apart extremely easy. If it wasn't it would require a little more effort and you would have to be careful as to not loose the spring. There will be two little plastic cups/caps and the spring is inside there. Replace the spring and reverse the disassembly process
Thanks SundownAudioNY! I will give it a try later this evening or tomorrow. I was hoping that the entire thing didn't need replaced as these covers are expensive! This is was on the truck when I bought it; pretty sure it's the GM fuel door cover as my truck has the chrome mirrors, handles, nerf bars...

  #4
Old 02-14-2013 | 10:45 AM
SundownAudioNY's Avatar
Senior Member
Joined: Nov 2010
Posts: 273
From: New York
Default

Originally Posted by lostsoul77
Thanks SundownAudioNY! I will give it a try later this evening or tomorrow. I was hoping that the entire thing didn't need replaced as these covers are expensive! This is was on the truck when I bought it; pretty sure it's the GM fuel door cover as my truck has the chrome mirrors, handles, nerf bars...
I have pics on my computer from when I disassembled the one I had to powdercoat it. I will try and upload them this afternoon and post them for you. Sounds like a GM door as that's the only one that I can think of that holds tension to stay closed (most aftermarket lock or latch and that's how they stay closed).

  #5
Old 02-14-2013 | 12:44 PM
SundownAudioNY's Avatar
Senior Member
Joined: Nov 2010
Posts: 273
From: New York
Default

Name:  7cfc612daa70465fc03b13a143e114c0.jpg
Views: 992
Size:  89.4 KB

  #6
Old 02-14-2013 | 03:25 PM
lostsoul77's Avatar
Thread Starter
|
Senior Member
Joined: Jun 2011
Posts: 146
From: Pittsburgh, Pa
Question

I see that black cap when I open it and always wondered if it was spring loaded. I thought that mine might be froze inwards. I'll try and post a pic later. Does the cap just pull off once I take the fuel door off?

  #7
Old 02-14-2013 | 03:44 PM
SundownAudioNY's Avatar
Senior Member
Joined: Nov 2010
Posts: 273
From: New York
Default

Originally Posted by lostsoul77
I see that black cap when I open it and always wondered if it was spring loaded. I thought that mine might be froze inwards. I'll try and post a pic later. Does the cap just pull off once I take the fuel door off?
Yep, cap just pulls off to expose the spring

  #8
Old 02-15-2013 | 11:10 AM
lostsoul77's Avatar
Thread Starter
|
Senior Member
Joined: Jun 2011
Posts: 146
From: Pittsburgh, Pa
Default

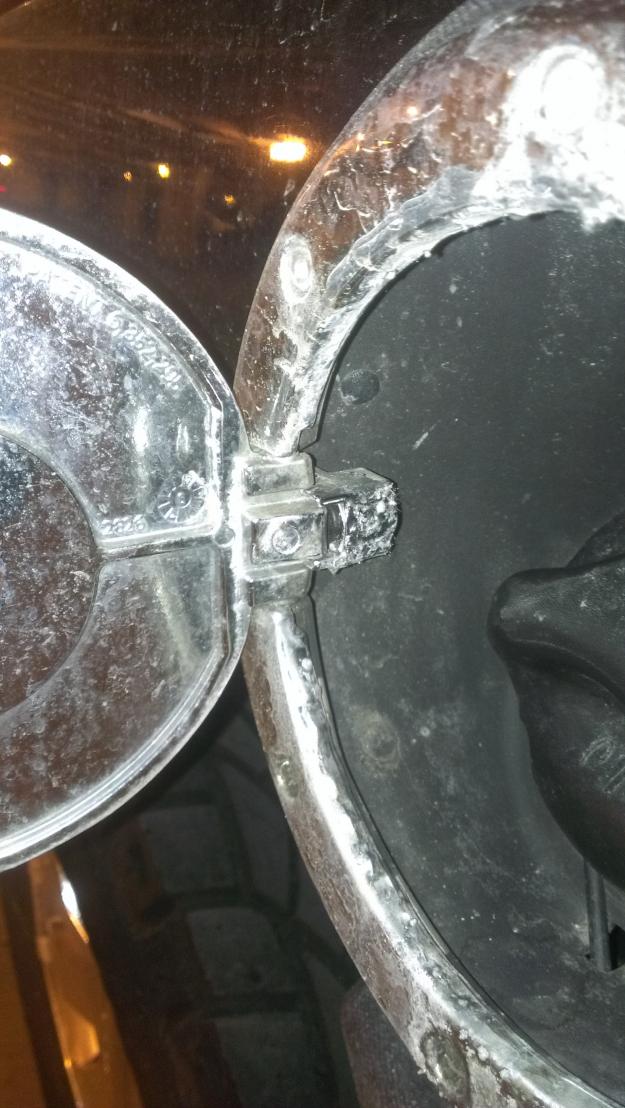

the plastic cap on mine seems recessed in...

Attached Thumbnails Chrome Hummer Fuel Door cover..weird question-imag0921.jpg
  #9
Old 04-02-2013 | 05:00 PM
lostsoul77's Avatar
Thread Starter
|
Senior Member
Joined: Jun 2011
Posts: 146
From: Pittsburgh, Pa
Question

Originally Posted by SundownAudioNY
Yep, cap just pulls off to expose the spring
Any clue as to whether I can purchase a replacement cap and spring? I kinda ruined the cap with trying to pry it off; got holes poked all in it. was able to pull the cap forward but not off in order to expose the spring.

  #10
Old 04-02-2013 | 05:11 PM
egroegart's Avatar
Senior Member
Joined: Feb 2011
Posts: 501
Default

There are literally hundreds of choices. Just google it.
